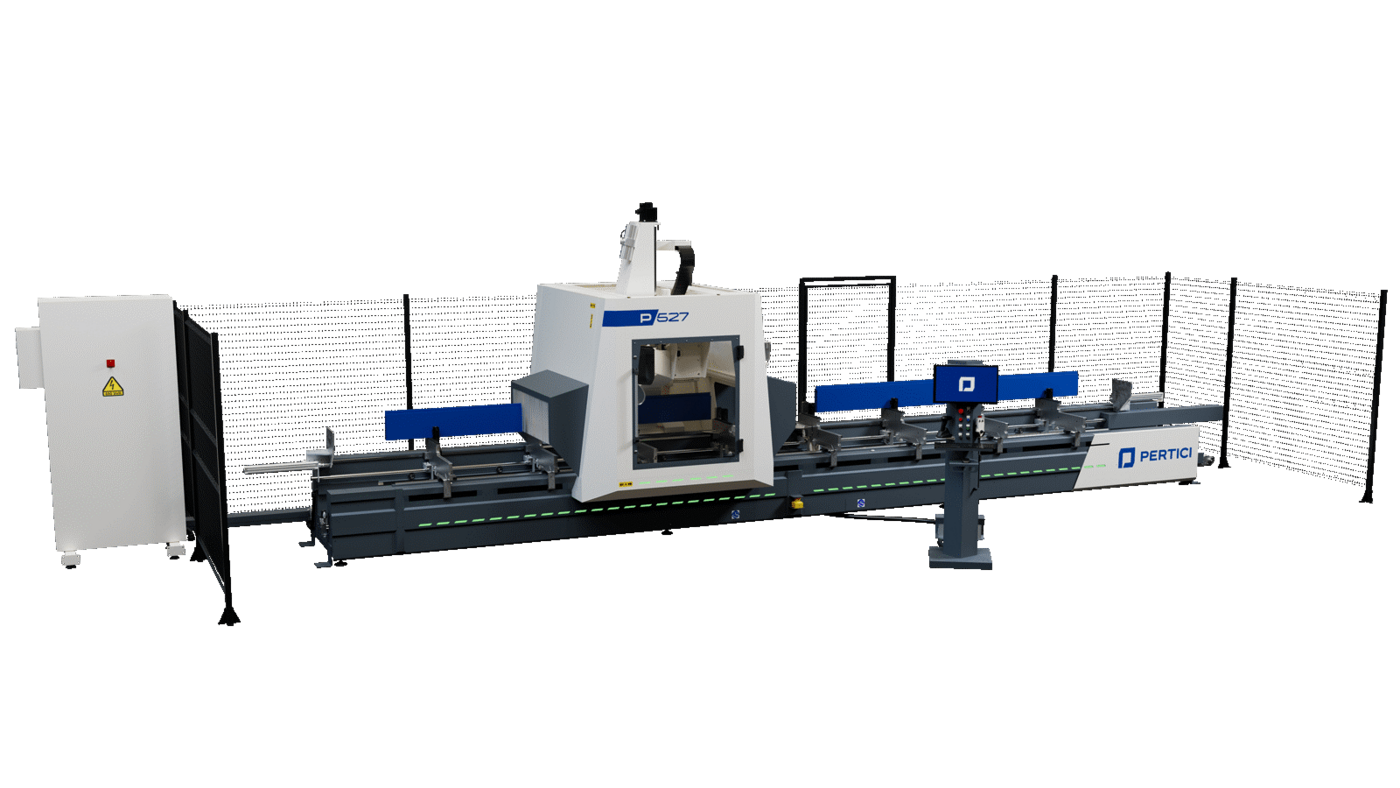

PERTICI P524 / P527
Machining center
Special features:
CNC machining centre with 5 controlled axes, designed for milling, drilling, tapping, sawing and notching of profile bars, single parts or even large profile cross-sections in aluminium, PVC, light alloys and steel. The standard machine lengths are 4 m, 7 m, 9 m with two different working modes: 1 zone machining over the entire machine length, or shuttle operation with 2 independent zones.
Technical data:
Control unit
Pertici P CAM
Travel X
5.150 mm
Travel X option
7.000 mm
Travel Y
1.170 mm
Travel Z
565 mm
Spindle speed
24.000 U/min
Tool holder
HSK F63
Drive power
18 kW
Axles
5
Tool places
10
Tool places option
16
Materials
Aluminium
Plastic
Steel
Plastic
Steel
Additional information:
Branches
Window construction
Türenbau
Facade construction
Türenbau
Facade construction
Application areas
Aluminium and PVC bar machining
Steel processing
Steel processing
