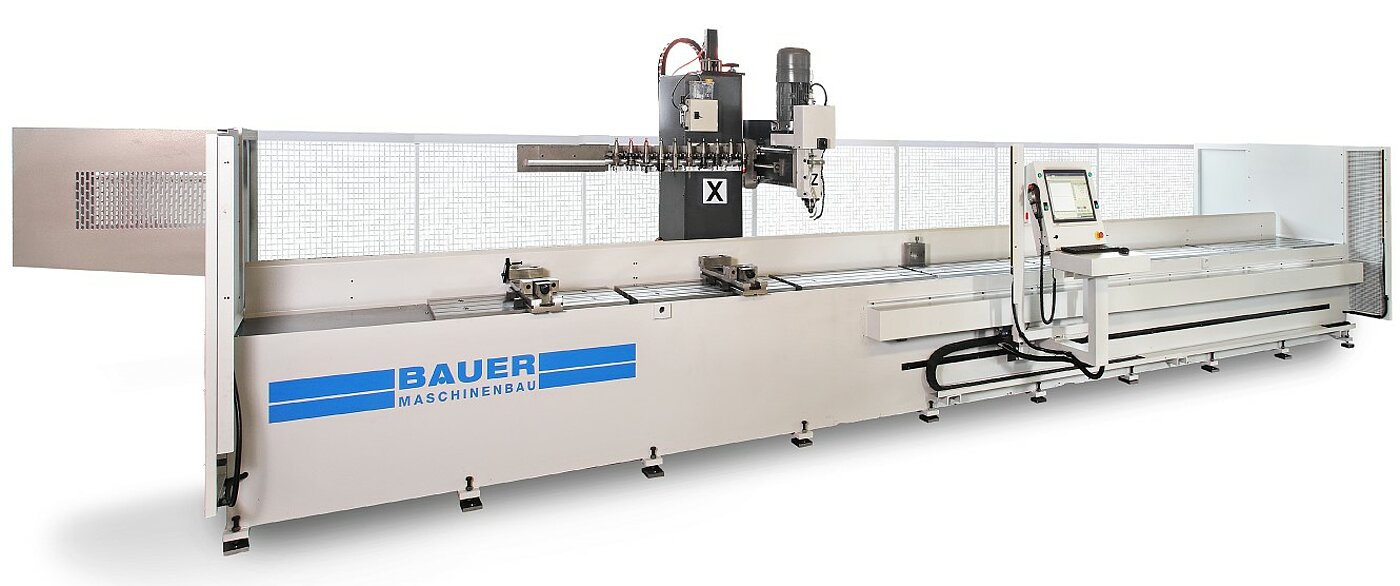

BAUER Bohrmax Z
Fully automatic drilling rig
Special features:
The answer to the problem of economical drilling and simple milling work on long, already sawn workpieces. Drilling system on travelling column principle - the table remains stationary, the drilling head moves. Simple operation, no CNC knowledge required. DXF data import. Robust design with proven machine components, clear machine construction guarantee long service life and high availability.
Technical data:
Travel X
3.050 mm
Travel X option
20.000 mm
Travel Y
580 mm
Travel Z
700 mm
Spindle speed
2.500 U/min
Spindel speed option
4.000 U/min
Tool holder
SK 40
Drive power
7,50 kW
Axles
3
Materials
Steel
Stainless steel
Stainless steel
Additional information:
Branches
Balcony construction
Facade construction
Steel construction
Facade construction
Steel construction
Application areas
Steel processing
